& gt; Inkasta oo ay la mid tahay qaabka la midka ah ee loo yaqaan "ring octagonal joint & gt; Taxanaha BX waxaa loo isticmaali karaa oo kaliya keliya 6BX flanges & gt; Xirmooyinka BX ee cabbirka cadaadiska sare oo laga bilaabo 5,000 lbs, iyo dhamaadka 20,000 rodol. & gt; Nidaamada dib looma celin karo.
BXNooca garaaca wadnahatwaxa loola jeedaa goglan biraha ah ee qaybta BX-qaabeeya iyadoo la marinayo qalabka biraha. Waxaa ka mid ah cadaadiska tamarta
ee dhinaca jihada, hal nooc oo khaas ah oo ah birta birta ah ee birta ah. Waxay leedahay suufgudahawanaagsan sida xiriirka u dhexeeya goferka iyo isgubka
wajiyo, gaar ahaan wajiga dibedda, iyo waxaa si adag loo cadaadiyaa si loo ilaaliyo waxqabadka fiican.
BXNooca garaaca wadnahatislagu rakibay gudaha qaybta giraanta ah ee wajiga flange. Marka bolumku xiran yahay, waa la cadaadiyaa
gudahaxagasha direction andispressed close to the upper and lower ring joint grooves, which result gudahathe plastic deformation to create the seal.
Cadaadiska kadib is raised, ring gasket expandsgudaharadial direction under the force of media pressure. The gasket sticks more tightly to the
wejiga hore ee giraanta jeexjeex si aad u sameysid adoo adkeynaya. Si kastaba ha noqotee, cadaadiska warbaahintu waxay u jajabisaa flangeerka iyo isku xirka bolutka, waa
doonayaasabab u noqoshada qaraabada between the sealingsurfaces, and the sealing ratio ofgaskets is reduced accordingly. BXring type
gaas wadajir ahwaa nooc ka mid ah cadaadiska gogosha gogolka.
Fiiro gaar ah: Marka la doorto nooca loo yaqaan 'octagonal type', qalabka adag ee suufka waa inuu ahaado 15 ~ 20HB ka hooseeya kan flange wajiga. Waa
lagu taliyeysariirta laguma soo celin karo.
Heerarka la adeegsan karo:
ANSI B16.5-1973, JPI-75-15-70, GB 699, GB1220, JB755, HG20633-97

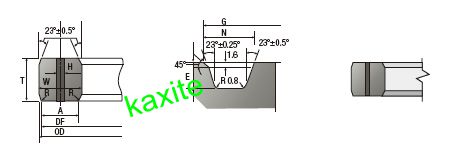

BXRing Joint Gasket Drawings:
Qodobada ugu muhiimsan:
|
Qalabka |
Wareeg adag oo adag BRINELL |
Heerkulka (℃) |
Soo gaabinta |
|
|
Brucellosis |
Rockwell |
|||
|
Dhirta Birta |
90 |
56 |
-60 500 |
D |
|
Kaarboon Low Carbon |
120 |
68 |
-40 ~ 540 |
S |
|
304SS |
160 |
83 |
-250 540 |
304 |
|
304LSS |
160 |
83 |
-250 540 |
304L |
|
316SS |
160 |
83 |
-200 815 |
316 |
|
316LSS |
160 |
83 |
-200 815 |
316 |
|
321SS |
160 |
83 |
-200 870 |
321 |
|
347SS |
160 |
83 |
-200 870 |
347 |
|
410SS |
170 |
86 |
-40 850 |
410 |
|
5Cr-0.5Mo |
130 |
|
-29 650 |
|
|
Copper |
80 |
|
-100 315 |
|
|
Aluminum |
35 |
|
-200 425 |
|
|
Qiyaastii 600 |
150 |
|
-100 1095 |
|
|
Incoloy 825 |
150 |
|
-100 1095 |
|
|
Monel 400 |
150 |
|
-100 760 |
|
|
Titanium |
215 |
|
-200 540 |
|
|
Nickel 200 - |
110 |
|
200 760 |
|
|
Hastelloy B2 |
230 |
|
-100 1095 |
|
|
Hastelloy C276 |
210 |
|
-100 1095 |
|
Waa maxay sababta doortay US
1. Xirfadle
Waxaan bixinnaa OEM, ODM ee Ringkets macaamiisha oo loogu talagalay macaamiisheena adduunka oo dhan, oo aad u ammaanay macaamiisheenna
2. Dammaanad tayo sare leh.
Waxaan si adag u fulineynaa nidaamka maaraynta tayada ISO ee habka wax soo saarka iyo walxo cayriin ah.
3. High Quality Qalabka Quarantee
Dhamaan alaabtayadu waa qalab tayo sare leh sida ASTM
4. Adeegga kadib
24 Saacadaha X 7 maalmood ka dib adeegga
5. Qiimaha Sheyga ee leh Mlls Mll
Waxaan ballan-qaadeynaa warshad hooseeya oo leh MOQ yar.
6Dhammaan Bixinta
Saameynta muunadaha sawir-qaadista ee 3-4 maalmood
Qalabka wax soo saarka ee qalabaynta 10-15 maalmood
Si amar ah 7-15 maalmood sida ku xusan tirada
